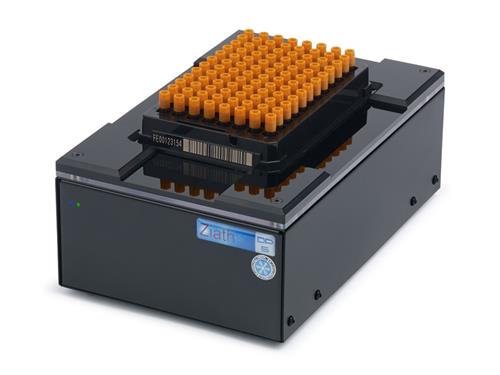

Ziath DP5 Mirage Rack Reader

Mirage Standalone and DP5 Standard; includes DP5 Mirage instrument, power adaptor and country relevant power cable, DP5 software (download link supplied), Cryoprotection, USB lead to connect instrument to host computer, and user guide (download link supplied); 1 reader. Setting new standards for 2D barcode rack scanners. SBS only reader, easy to set up and easy to use.. The most compact camera based SBS 2D rack scanner available Automation friendly: low profile allows use on robotic integrations for liquid handling systems
Innovative and unique scanning technology (patent pending)
Scans all current, commonly used, SBS format racks
Scans acoustic tube racks in seconds (i.e. AcoustiX)
With Cryoprotection: Prevents the scanner window from misting when scanning a cold rack from a freeze. Our passive technology does not use heat or blown air
EASY TO SET-UP AND EASY TO USE
DP5 Mirage 2D scanner offers easy, out-of-the-box set up and is delivered pre-calibrated and ready to scan
Low profile and economic price makes the Mirage the perfect replacement for a traditional flat bed scanner
SPECIFICATIONS
Dimensions: 208mm x 135mm x 80mm
Weight: 1.35kg
Power Adaptor: Input 100-240VAC, Output 5Vdc 4A
Power consumption: <10 watts
Scans all currently available 24, 48, 96, 240 position racks
Scanning technology: CMOS camera
Scan time: approx 2 seconds
Compatible with datamatrix 2D barcodes
Working temperature: 5-35°C
Export data as CSV, Text, XLS, XML, JSON, Python, DB, PNG or E-mail
Operating system on host computer: Windows® 10, 11
Warranty: 2 years
Free DP5 software upgrades for life
Software includes remote control capability for integration applications
