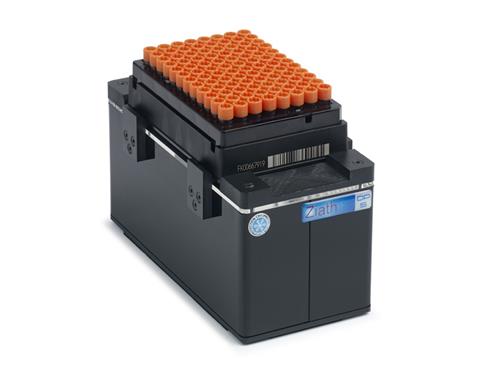

Ziath DP5 Express Rack Reader

Express Standalone and DP5 Standard; includes DP5 Express instrument, power adaptor and country relevant power cable, DP5 software (download link supplied), Cryoprotection, USB lead to connect instrument to host computer, and user guide (download link supplied); 1 reader. The Express Rack Reader is a 2D datamatrix tube camera reader with an image capture time of only one second. Compatible with all 2D barcoded tube racks in SBS format, the Express is the smallest rack scanner currently available and ideal for robotic integration. . Smallest footprint 2D barcode rack scanner
Fast camera-based scanner
Ideal for integration into large automated systems
Capable of scanning all SBS Rack formats
Patented technology allows imaging under difficult lighting conditions
With Cryoprotection: Prevents the scanner window from misting when scanning a cold rack from a freeze. Our passive technology does not use heat or blown air
EASY TO SET-UP AND EASY TO USE
DP5 Express 2D scanner offers easy, out-of-the-box set up and is delivered pre-calibrated and ready to scan
SPECIFICATIONS
Imager Dimensions: 85mm x 185mm x 95mm (WxDxH)
Controller Dimensions: 95mm x 195mm x 55mm (WxDxH)
Total Weight: 1.4kg
Power adaptor input: 100-240VAC; output: 5VDC, 4A
Compatible with 24, 48, 96, 240, 384 position SBS racks
Compatible with all commercially available datamatrix 2D coded tubes
Export data as CSV, Text, XLS, XML, JSON, Python, DB, PNG or E-mail
Operating system on host PC: Windows® 10, 11
Data output connector: USB3 or RJ45
Warranty period: 2 years
Free DP5 software upgrades for life
Software includes remote control capability for integration applications
