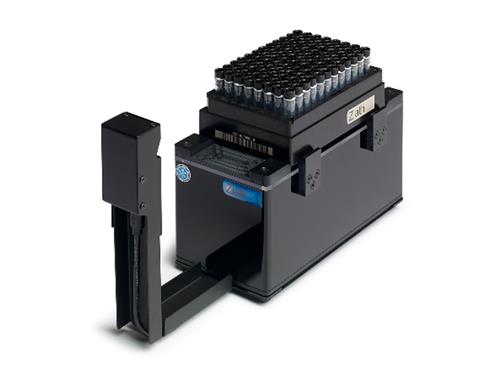

Cyclops 1D linear code scanner for Cube; 1 side reader. The Cyclops comes with a dedicated bracket for each of the three Ziath camera-based rack readers: Mirage, Express or Cube. Scans linear 1D barcodes printed on the end of a rack of 2D barcoded tubes..
| Parameter |
FrameStar 384 Well Skirted PCR Plate |
| Plate length |
127.76 ± 0.25mm |
| Plate width |
85.48 ± 0.25mm |
| Plate height |
10.60 ± 0.25mm |
| Well depth |
9.60 ± 0.10mm |
| Well diameter |
3.10 ± 0.10mm |
| Total well capacity |
55µl |
| Working volume |
<30µl |
| Distance to center of A1 from top edge |
8.99 ± 0.25mm |
| Distance to center of A1 from left edge |
12.13 ± 0.25mm |
| Pitch (distance between A1 and A2) |
4.50mm |
