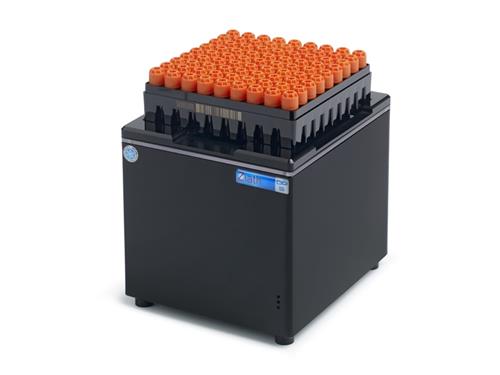

Cube Standalone and DP5 Standard; includes DP5 Cube instrument, power adaptor and country relevant power cable, DP5 software (download link supplied), Cryoprotection, USB lead to connect instrument to host computer, and user guide (download link supplied); 1 reader. A compact, versatile, quick and robust scanner with minimal cabling. The Cube Rack Reader is a 2D datamatrix tube camera reader with a scan & decode time of 1-2 seconds. The Cube can read all racks on the market including Cryoboxes and SBS racks; even 384 racks.. Compatible with 24, 48, 96, 240, 384 SBS racks
Compatible with 81, 100 and 196 cryoboxes
Smallest 'scan all' scanner on the market
Camera based instrument resulting in rapid imaging and decoding
Automation friendly: footprint ideal for benchtop and integration
Minimal cabling
Includes masks for rack/cryobox compatibility
With Cryoprotection: Prevents the scanner window from misting when scanning a cold rack from a freeze. Our passive technology does not use heat or blown air
EASY TO SET-UP AND EASY TO USE
DP5 Cube 2D scanner offers easy, out-of-the-box set up and is delivered pre-calibrated and ready to scan
SPECIFICATIONS
Dimensions: 152mm x 174mm x 146mm (WxDxH)
Weight: 1.2kg
Power adaptor input: 100-240VAC; output: 5VDC, 4A
Compatible with 24, 48, 96, 240, 384 position SBS racks
Compatible with 81, 100, 196 position cryoboxes
Compatible with all commercially available datamatrix 2D coded tubes
Export data as CSV, Text, XLS, XML, JSON, Python, DB, PNG or E-mail
Operating system on host PC: Windows® 10, 11
Warranty period: 2 years
Free DP5 software upgrades for life
Software includes remote control capability for integration applications
