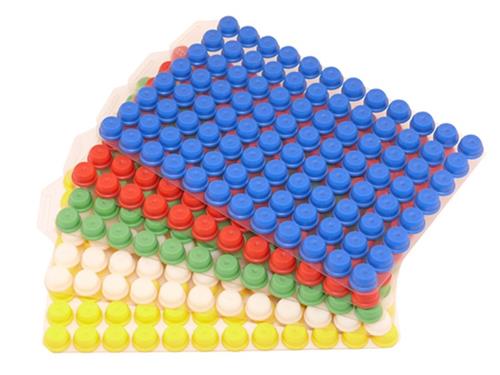

TPE Septum Cap, 96-format; for internal thread tubes, natural, on backing mat; 50 mats/4,800 caps.
TPE septum caps have been developed to meet the demands of sample security, management and tracking in modern high-density storage applications
- Optimal seal quality
- Suitable for cryogenic storage as low as -80°C
- Made from TPE
- Available on backing mats or bulk
- For use with internal thread tubes
Developed to meet the demands of sample security, management and tracking in modern high-density storage applications. A cost effective sealing option for samples that are only accessed occasionally. Compatible with 96-format tubes, available for use with internal thread tubes.
Suitable for use with automatic and semi-automatic cappers and de-cappers. Manufactured from high-quality thermo plastic elastomer (TPE); disposable.
Key Features:
Practical Design:
- Pierceable
- Disposable
- Suitable for sealing internal thread tubes
- Option supplied in 96-format back mats help facilitate automation
- Broad operating temperature range: -80°C to +110°C
- Ideal solution for -20°C storage with occasional access
Options:
- Internal thread TPE septum caps
- Internal thread caps come in a choice of five colors to aid sample identification
- Compatible with 96-format internal thread tri-coded tubes: 0.48ml, 0.65ml, 0.9ml
- Compatible with 96-format internal thread dual-coded tubes: 0.3ml, 0.7ml, 0.9ml
.
| Parameter |
FrameStar 384 Well Skirted PCR Plate |
| Plate length |
127.76 ± 0.25mm |
| Plate width |
85.48 ± 0.25mm |
| Plate height |
10.60 ± 0.25mm |
| Well depth |
9.60 ± 0.10mm |
| Well diameter |
3.10 ± 0.10mm |
| Total well capacity |
55µl |
| Working volume |
<30µl |
| Distance to center of A1 from top edge |
8.99 ± 0.25mm |
| Distance to center of A1 from left edge |
12.13 ± 0.25mm |
| Pitch (distance between A1 and A2) |
4.50mm |
