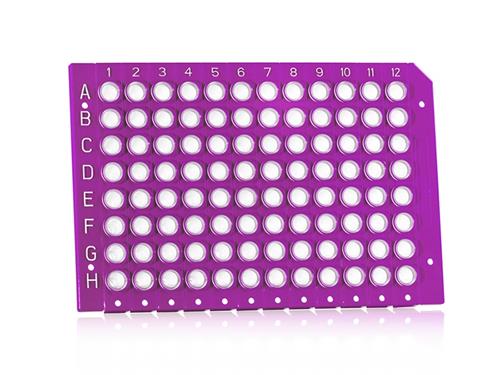

FrameStar® Breakable Vertically PCR Plate, Low Profile

96 well semi-skirted plate, vertically scored, snaps easily into strips of 8 tubes or part plates, cut corner A12; low profile, 0.1ml polypropylene wells, polycarbonate frame; working volume: <100µl, total well capacity: 200µl

• Available 2D coded on request

Our FrameStar Breakable Vertically PCR Plates, Low Profile utilize the 2-component design of the FrameStar range, which combines the advantages of thin-walled polypropylene tubes for optimum PCR results and a rigid frame portion for easy and reliable handling.

This low profile plate has shorter wells than the standard profile plate (4ti-1000), decreasing the "dead space" between the heated lid of the thermal cycler and the sample. This eliminates condensation on the side wall of the tube, preventing reduction in PCR volume and increasing the efficiency of the reaction. Low profile products are especially recommended for use with reaction volumes below 20µl.

Key Features:

Quality:

• Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
• 2-component design prevents distortion of tube strips

Wells:

• Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
• Low profile 0.1ml (100µl) working volume, with a 0.2ml (200µl) total well capacity when used with sealing options

Frame:

• End tabs for easy handling and labeling
• Eliminates strip breakage
• Alphanumeric grid reference to aid well and sample identification

Use:

• Rigid PCR plate that can be broken into smaller plate sections
• Fits majority of thermal cyclers
• Compatible with standard multichannel pipette

Options:

• Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, black, and white
• Also available as a black frame with white wells for use with optical assays such as qPCR
• Also available as FrameStar Breakable Vertically PCR Plate (0.2ml well capacity option)
• 2D coding option
