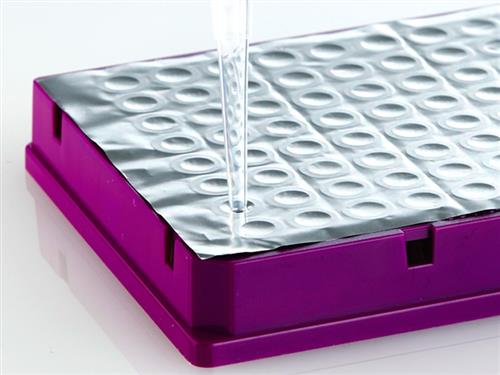

Pierce Heat Seal Strong, Strong heat sealing foil, peelable from COC plates, pierceable, suitable for PCR, sample shipping, compound storage; sheets (125mm x 78mm); 100 sheets.
Polypropylene wells, polycarbonate frame, cut corner A24; working volume: <30µl, total well capacity: 55µl; designed for use on standard thermal cyclers
- Available barcoded on request
- Ultra-low DNA binding option available
Our FrameStar 384 Well Skirted PCR Plates are designed for high-throughput PCR. They are compatible with the majority of 384 well block PCR, qPCR and sequencing instruments. The rigid 2-component design eliminates warping and distortion during PCR making it ideal for use with robotic systems. The skirt allows for labeling or barcoding.
Key Features:
Quality:
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
- Stackable
Wells:
- Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
- <30µl working volume, 55µl total well capacity
Frame:
- Rigid polycarbonate frame for added mechanical stability
- Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
- Improved seal integrity due to thermal stability of the frame
- Alphanumeric grid reference to aid well and sample identification
Use:
- Recommended for low volume PCR
- Compatible with standard multichannel pipettes
- Ideal for use with robotic systems
- Compatible with the majority of 384 well block PCR, qPCR and sequencing instruments
Options:
- Available with the following frame color options for the clear well variety: purple, blue, clear, green, red, and black
- Also available as a black frame with white wells (for optimum signal-to-noise ratio when using fluorescent based assays)
- Available as a black frame with black wells (for minimal light diffusion and interference)
- Also available as a clear frame with frosted wells for use with ABI®/LifeTechnologies® qPCR instruments
- Ultra-low DNA binding option available (4ti-LB0147) for sensitive applications with ultra-low DNA input and for maximum DNA recovery after low temperature storage and high temperature incubation
- Available barcoded upon request
.
| Parameter |
FrameStar 384 Well Skirted PCR Plate |
| Plate length |
127.76 ± 0.25mm |
| Plate width |
85.48 ± 0.25mm |
| Plate height |
10.60 ± 0.25mm |
| Well depth |
9.60 ± 0.10mm |
| Well diameter |
3.10 ± 0.10mm |
| Total well capacity |
55µl |
| Working volume |
<30µl |
| Distance to center of A1 from top edge |
8.99 ± 0.25mm |
| Distance to center of A1 from left edge |
12.13 ± 0.25mm |
| Pitch (distance between A1 and A2) |
4.50mm |
