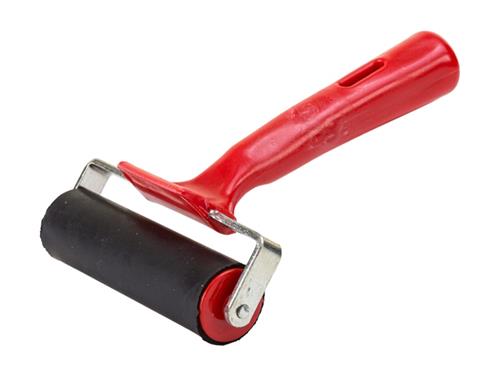

Adhesive Seal Roller, Sealing accessories ensuring even pressure is applied across the adhesive seal for complete and secure application to your plate, across every well, red; 1 roller.
Our Adhesive Seal Roller & Adhesive Seal Applicator ensure even pressure is applied across the adhesive seal for a complete application to the plate
To obtain the best sealing results when using Azenta's adhesive seals, we strongly recommend the use of the Adhesive Seal Roller (4ti-0502) or Adhesive Seal Applicator (4ti-0503). Both application tools ensure even pressure is applied across the adhesive seal for complete and secure application to your plate, across every well.
The handle of the Adhesive Seal Roller is made of a durable plastic, with a semi-hard padded rolling wheel. The straight rigid sides of the small-sized Adhesive Seal Applicator allow for even pressure application.
.
| Parameter |
FrameStar 384 Well Skirted PCR Plate |
| Plate length |
127.76 ± 0.25mm |
| Plate width |
85.48 ± 0.25mm |
| Plate height |
10.60 ± 0.25mm |
| Well depth |
9.60 ± 0.10mm |
| Well diameter |
3.10 ± 0.10mm |
| Total well capacity |
55µl |
| Working volume |
<30µl |
| Distance to center of A1 from top edge |
8.99 ± 0.25mm |
| Distance to center of A1 from left edge |
12.13 ± 0.25mm |
| Pitch (distance between A1 and A2) |
4.50mm |
