PCR Seal

Supplied by Azenta Life Sciences


  • 4TI-0500 | PCR Seal
  • 4TI-0500 | PCR Seal
Average lead time: Call for Lead Time
Need Assistance?

Jump to Section
Product Description

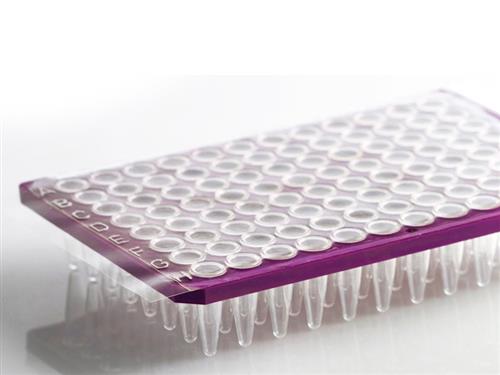

PCR Seal, Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; sheets (135 x 80mm); 100 sheets.

Clear adhesive film, strong adhesive, peelable; suitable for PCR and optical applications; available as a full sheet, perforated for tearing into 8 well strips or 12 well strips

Our PCR Seal is a durable transparent polyester film with a strong adhesive layer. The seal enables a high integrity and efficiently prevents sample evaporation. It is recommended for PCR, qPCR, and other optical applications (e.g. fluorescence or colorimetric measurements) as well as sample storage.

The PCR Seal is also available in two flexible formats with perforated sheets, to enable tearing into 8 well and 12 well strips, respectively. This allows for sealing of complete 96 well plates, but also individual or multiple divisible plate strips, perfectly complementing these products.

For all adhesive seals, the best sealing results are achieved using the hand held Adhesive Seal Roller (4ti-0502).

Key Features:

Quality & Properties:

  • Non-pierceable, please refer to our PCR Foil Seal Strong for a pierceable variant
  • Peelable
  • Seal integrity range: -20°C to 110°C
  • Non-sterile
  • Free from DNase, RNase, and human genomic DNA

Use:

  • Applications: PCR, qPCR
  • Removal: features adhesive-free end tabs for easy removal, will not leave a sticky residue on the plate surface following removal

Options:

  • Sheet format: 135 x 80mm, to fit all standard SBS footprint PCR and qPCR plates, microplates, assay and storage plates
  • Perforated sheet format: 115 x 100mm, for tearing into 8 well strips
  • Perforated sheet format: 137 x 71mm, for tearing into 12 well strips
.
Parameter FrameStar 384 Well Skirted PCR Plate
Plate length 127.76 ± 0.25mm
Plate width 85.48 ± 0.25mm
Plate height 10.60 ± 0.25mm
Well depth 9.60 ± 0.10mm
Well diameter 3.10 ± 0.10mm
Total well capacity 55µl
Working volume <30µl
Distance to center of A1 from top edge 8.99 ± 0.25mm
Distance to center of A1 from left edge 12.13 ± 0.25mm
Pitch (distance between A1 and A2) 4.50mm
Specifications
Inventory Number:
BKA4TI0500CS
Part Number:
4TI-0500
Supplier:
Azenta Life Sciences
Supplier's Lead Time:
Call for Lead Time
Quantity:
100 per CS
Contract Availability:
Country of Origin:
United Kingdom
Additional Information
