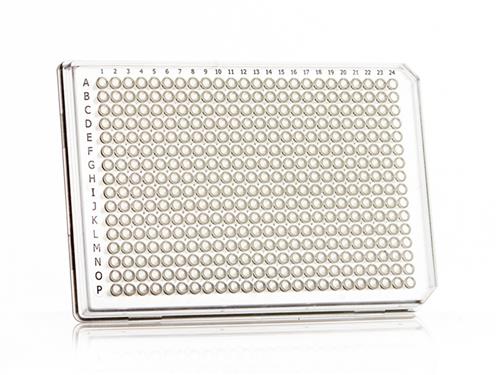

FrameStar® 384 Well Skirted PCR Plate, Roche Style

Polypropylene wells, polycarbonate frame, cut corners A24 and P24; working volume: <30µl, total well capacity: 55µl; designed for use on the Roche LightCycler^® 480 with 384 well block

• Available barcoded on request

The dimensions of these plates are designed to achieve optimized assay conditions on the Roche LightCycler^® 480, and are in a 384 well format for reaction volumes of up to 30µl. The rigid two-component design eliminates warping and distortion during the PCR process, making it ideal for use with robotic systems.

Key Features:

Quality:

• Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
• Stackable

Wells:

• Ultra-smooth, uniform, thin-walled polypropylene tubes for optimum PCR and real-time (RT-qPCR) results
• <30µl working volume, 55µl total well capacity

Frame:

• Rigid polycarbonate frame for added mechanical stability
• Significantly reduced thermal expansion and sample evaporation for improved consistency in PCR results
• Improved seal integrity due to thermal stability of frame
• Alphanumeric grid reference to aid well and sample identification

Use:

• Compatible with Roche LightCycler^® 480
• Recommended for low volume PCR
• Compatible with standard multichannel pipettes
• Ideal for use with robotic systems

Options:

• Available as a clear polycarbonate frame with clear polypropylene wells
• Also available with white wells for optimum signal-to-noise ratio when using fluorescent based assays
• Available barcoded upon request
• Combi packs available with qPCR Seal (4ti-0560)
