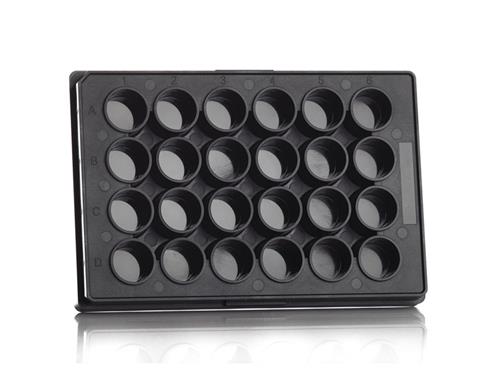

24 Well Assay Plate, 1.88ml round wells, flat base, polystyrene, cut corner A1; black; 100 plates.
1.88ml round wells, flat base, polystyrene, cut corner A1
- Available barcoded on request
The Azenta Life Sciences 24 well polystyrene assay plates have flat bottom wells and have been designed for fluorescence applications. The plates give optimum results for most top-reading instruments and conform to standard SBS footprint. Black plates have a low background fluorescence and minimize light scattering. This high quality plate assures the necessary accuracy and consistency for automated high throughput systems.
Key Features:
Quality & Material:
- Made from polystyrene, a hard material with optical clarity
- Non-sterile as standard
- Leak-free
- Free from DNase, RNase, human genomic DNA, and endotoxin/pyrogen
Wells:
- Flat bottom wells, designed for optical imaging and cell culture application
- Round wells, for reduced droplet effects and wicking
Frame:
- Alphanumeric grid reference to aid well and sample identification
- SBS footprint
Use:
- Best used for cell culture, fluorescence, luminescence, imaging and light assays, ELISA, and homogeneous assays
- Compatible with plate readers and ideal for use with automation
Options:
- Available as a black microplate, ideal for low background fluorescence; it minimizes light scattering, suitable for fluorescent and light assays and imaging, recommended for top reading fluorescence instrumentation
- Sterilization available upon request
- Available barcoded upon request
- Our Moisture Barrier Seal 24 (4ti-0516/24) is recommended as sealing option, as it is optically clear and allows repeated imaging without removal, reducing contamination risks
- Lids available
.
| Parameter |
24 Well Assay Plate |
| Plate length |
127.76 ± 0.25mm |
| Plate width |
85.48 ± 0.25mm |
| Plate height |
15.00 ± 0.25mm |
| Well depth |
12.50 ± 0.25mm |
| Well diameter |
14.50 ± 0.10mm |
| Distance to center of A1 from top edge |
15.74 ± 0.25mm |
| Distance to center of A1 from left edge |
18.88 ± 0.25mm |
| Pitch (distance between A1 and A2) |
18.00mm |
