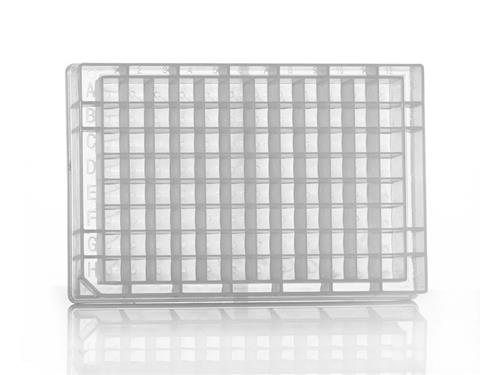

96 Square Deep Well Storage Microplate, Square wells, clear polypropylene; 1.2ml wells, U shaped bases; 10 x 10 plates.
1.2ml and 2.2ml square wells, U and V shaped bottom, clear polypropylene
- Available barcoded on request
These storage plates are designed for high density sample collection and storage for a wide array of applications within cell biology, molecular biology and drug discovery. They come in three formats: 1.2ml volume U shaped well plates (4ti-0126), 2.2ml volume V shaped (4ti-0132), and 2.2ml volume U shaped (4ti-0136) plates. 4ti-0126 is also recommended as an elution plate on KingFisher™ platforms.
All of these plates are ultra-flat for a completely uniform seal, either with adhesive or heat seals, or with our accompanying silicone sealing mat (4ti-0137). These plates are manufactured in cleanroom facilities which are certified free of RNase, DNase, human genomic DNA and endotoxins. We use only the highest medical grade virgin polypropylene with high resistance against chemicals such as DMSO, phenol, and chloroform.
Key Features:
Quality & Material:
- Made from polypropylene, a material with very low biomolecular binding characteristics, a high temperature tolerance and resistance to many standard laboratory chemicals, including DMSO
- Autoclavable
- Free from RNase, DNase, human genomic DNA and endotoxins
Wells:
- Conical V-bottoms (4ti-0132) and U-shaped bottoms (4ti-0126 and 4ti-0136)
- Square wells, to make the best use of space, and to improve mixing
Frame:
- Alphanumeric grid reference to aid well and sample identification
- SBS footprint
Use:
- Clear plate, perfect for storage applications
- Temperature range for use: -80°C to 120°C
- Best for precipitation, centrifugation and small volume recovery due to the conical V bottom, as the liquid gathers at the lowest point of the V for easy pipetting
- U-shaped bottom plates are best for washing, mixing and pelleting and give high surface area
- Stackable
- Suitable for adhesive and heat sealing
Options:
- Available with a U-shaped bottom in 1.2ml and 2.2ml
- Also available with a V-shaped bottom in 2.2ml
- Non-sterile as standard, sterilization available upon request
- Available barcoded upon request
- A clear silicone sealing mat (4ti-0137) is also available to fit these plates
.
| Parameter |
FrameStar 384 Well Skirted PCR Plate |
| Plate length |
127.76 ± 0.25mm |
| Plate width |
85.48 ± 0.25mm |
| Plate height |
10.60 ± 0.25mm |
| Well depth |
9.60 ± 0.10mm |
| Well diameter |
3.10 ± 0.10mm |
| Total well capacity |
55µl |
| Working volume |
<30µl |
| Distance to center of A1 from top edge |
8.99 ± 0.25mm |
| Distance to center of A1 from left edge |
12.13 ± 0.25mm |
| Pitch (distance between A1 and A2) |
4.50mm |
