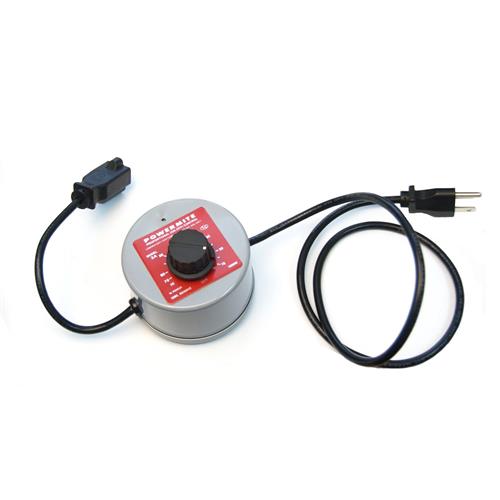

For use with sandbath heating mantle 720500-0101.
Features & Benefits
ON-OFF proportional control does not vary voltage. Designed to regulate resistive heat circuits.
The silver contacts (double-housed for super safety) cycle rapidly: For example, if the knob is set at 40% power, the contacts are closed 6.0 sec. and open 9.0 sec.; 6/15 = 40% power or "on" time.
Controls have grounded 3-wire power cords and are properly fused: 8 amp (ABC or 3AG, 1.25" x .25").
Rated at 1000 watts, 50/60 Hz
Controls have CSA certification (equiv. to UL approval).
